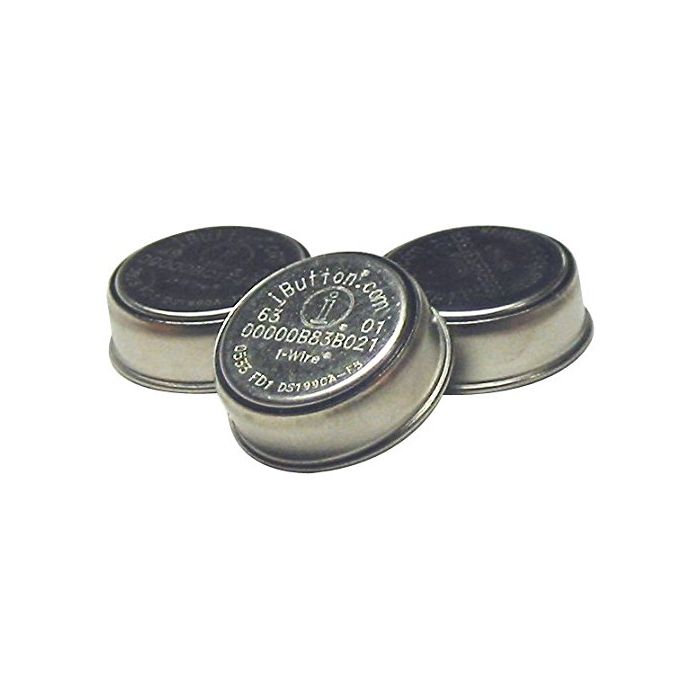

The iButton® 4Kb EEPROM (DS1973) is a rugged read/write data carrier that identifies and stores relevant information about the product or person to which it is attached
The iButton® 4Kb EEPROM (DS1973) is a rugged read/write data carrier that identifies and stores relevant information about the product or person to which it is attached. This information can be accessed with minimal hardware, for example a single port pin of a micro-controller. The DS1973 consists of a factory-lasered registration number that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit Family Code (23H) plus 4096 bits of EEPROM. The power to program and read the DS1973 is derived entirely from the 1-Wire® communication line. The memory is organized as sixteen pages of 256 bits each. The 64-bit registration number provides a guaranteed unique identity which allows for absolute traceability. Data is transferred serially via the 1-Wire protocol which requires only a single data lead and a ground return. The durable MicroCan package is highly resistant to harsh environments such as dirt, moisture, and shock. Its compact button-shaped profile is self-aligning with cup-shaped receptacles, allowing the DS1973 to be used easily by human operators or automatic equipment. Accessories permit the DS1973 to be mounted on printed circuit boards, plastic key fobs, photo-ID badges, ID bracelets, and many other objects. Applications include work-in-progress tracking, electronic travelers, access control and storage of calibration constants.
Key Features
4096 bits Electrically Erasable Programmable Read Only Memory (EEPROM)
Overdrive mode boosts communication speed to 142kbps
256-bit scratchpad ensures integrity of data transfer
Memory partitioned into 256-bit pages for packetizing data
Reduces control, address, data and power to a single data pin 8-bit family code specifies DS1973 communication requirements to reader
Reads and writes over a wide voltage range of 2.8V to 6.0V from -40°C to +85°C
