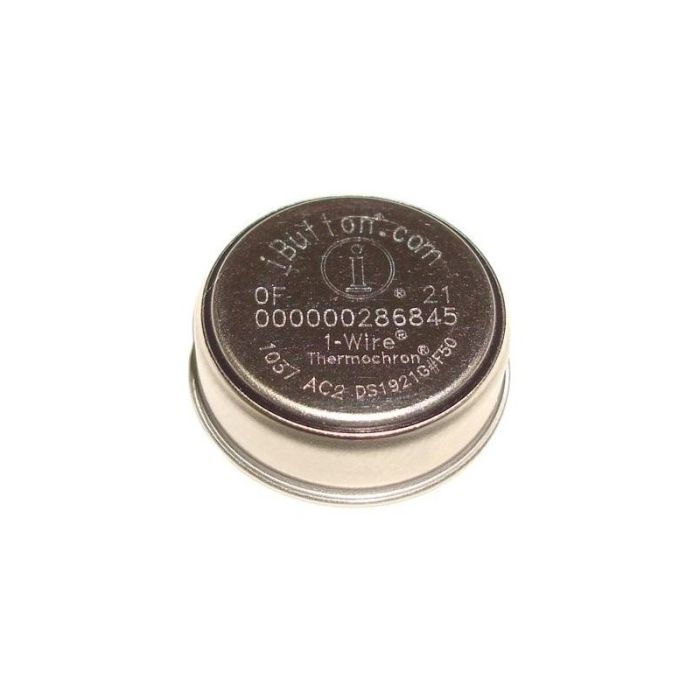

DS1925L-F5# Temperature Logger
| 1+ | 5+ | 10+ | 25+ | 50+ |
|---|---|---|---|---|
| €72.90 | €65.61 | €64.15 | €61.97 | €58.32 |
The iButton® temperature logger (DS1925) is a rugged, self-sufficient system that measures temperature and records the result in a protected memory section. The recording is done at a user-defined rate. A total of 122K 8-bit readings or 61K 16-bit readings taken at equidistant intervals ranging from 5min to 273hrs can be stored.
Now in stock!
Discover the latest iButton thermochron: DS1925L
Now available: the latest iButton temperature logger DS1925L. This temperature logger can measure and record temperatures in the range of -40°C to +85°C.
| Comparison | DS1925 | DS1922 |
| 1. Memory type | Nonvolatile flash memory. Recorded temperatures are retained even if battery is depleted. | SRAM, recorded temperatures are lost when battery is depleted. |
| 2. Memory capacity | The DS1925 can have more than 100,000 samples (122K memory). | Where as the DS1922 can only have 8000 samples (8K memory). |
| 3. Battery level | The DS1925 has a feature of measuring and reporting Internal Battery voltage Level. | DS1922 cannot show battery level. |
| 4. Sampling rate | Sampling rate for the DS1925 starts from 5 minutes to 273 hours. This is because the NVM requires more current, so the battery requires a longer recovery. | Sample rate from 1 second to 273 hours |
| 5. Temperature range | -40°C to +85°C |
DS1922L: -40°C to +85°C. |
The iButton® temperature logger (DS1925) is a rugged, self-sufficient system that measures temperature and records the result in a protected memory section. The recording is done at a user-defined rate. A total of 122K 8-bit readings or 61K 16-bit readings taken at equidistant intervals ranging from 5min to 273hrs can be stored. In addition, there are 512 bytes of nonvolatile memory for storing application-specific information. A mission to collect data can be programmed to begin immediately, after a user-defined delay, or after a temperature alarm. Access to the memory and control functions can be password protected. The DS1925 is configured and communicates with a host computing device through the serial 1-Wire® protocol, which requires only a single data lead and a ground return. Every DS1925 is factory-lasered with a guaranteed unique 64-bit registration number that allows for absolute traceability. The durable stainless-steel package is highly resistant to environmental hazards such as dirt, moisture, and shock. Accessories permit the DS1925 to be mounted on almost any object, including containers, pallets, and bags.
Key Features
- Provides High-Quality Temperature Exposure Assessment of an End Product
- Temperature Measurement Accuracy of ±0.5°C with Storage for Up to 125,440 Timestamped Values
- Flexibility to Monitor and Data-Log Long Duration Exposures with Short-Duration Time Intervals
- Unique Factory-Lasered 64-Bit Serial Number Ensures Absolute Traceability Because No Two Parts Are Alike
- Highly Configurable Options for Data Logging and Security
- Programmable Sample Rates from 5min to 273hrs
- Programmable Recording Start Delay After Elapsed Time or Upon a Temperature Alarm Trip Point
- Two-Level Password Protection of All Memory and Configuration Registers
- Measure and Report Internal Battery Level and Output-Logged Data if a Battery is Depleted
- Physically Robust, Operationally Efficient
- Durable Stainless-Steel Enclosure Withstands Harsh Environments and Conditions
- Communicates to a Host System with the Single-Contact 1-Wire Interface
- -40°C to +85°C Operating Temperature Range
| Manufacturer | Maxim Integrated |
|---|---|
| Memory Type | Flash |
| Memory Size | 122 KB |
| Data Logger Type | Temperature |
| Measurement Range | -40°C to +85°C |
| Temperature Readings | 125440 |
| Accuracy | ±0.5°C from -10°C to +60°C |
| Resolution | 0.5°C |
