DS1977-F5+ EEPROM 256Kb with Password Protection

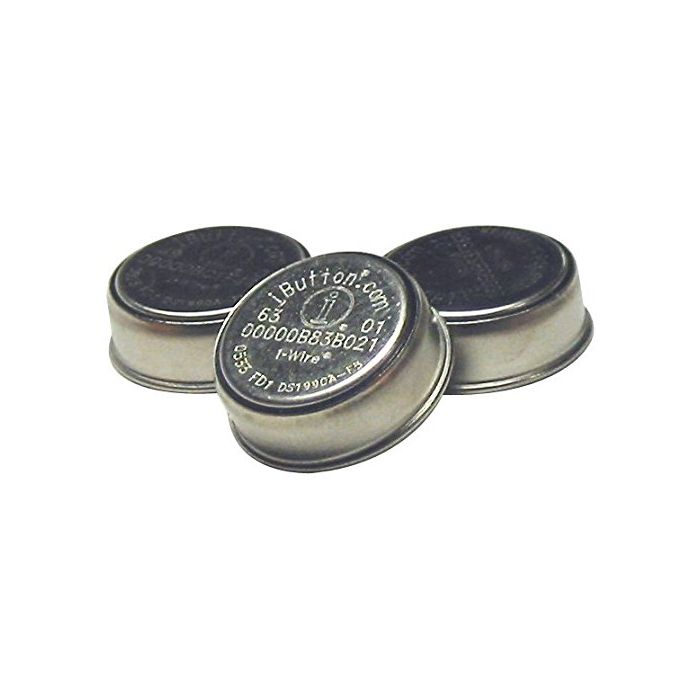

The iButton® 32KB EEPROM (DS1977) provides password protected access to data, both for read-only and full access. Data is transferred serially through the 1-Wire® protocol, which requires only a single data lead and a ground return. Every DS1977 is factory lasered with a guaranteed unique 64-bit registration number that allows for absolute traceability. The durable stainless-steel iButton package is highly resistant to environmental hazards such as dirt, moisture, and shock. Accessories permit the DS1977 to be mounted on almost any object, including containers, pallets, and bags.

Key Features

• 32KB EEPROM Organized as Pages of 64 Bytes Each
• Optional Password Protection with Different 64-Bit Passwords for Read and Full Access
• Communicates to Host with a Single Digital Signal at Up to 15.3kbps at Standard Speed or Up to 125kbps in Overdrive Mode Using 1-Wire Protocol
• Operating Range: 2.8V to 5.25V, -40°C to +85°C Minimum 100k Write Cycles Endurance
• 15kV Built-in ESD Protection
